This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

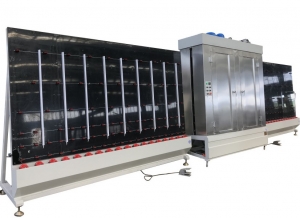

Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

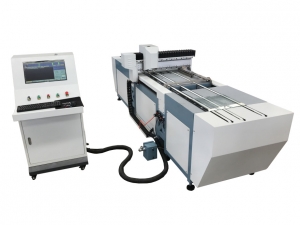

The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

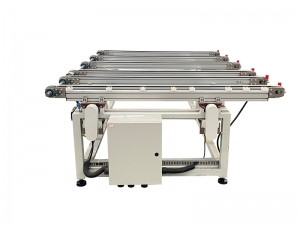

This table is for glass transmission, the table size is customized according to customer's requirements.
The only patent for laminated glass cutting in China This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy. A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system. B.Machine Parameters 1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control C. Machine configuration(Can specify configuration) 1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT 5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission shaft: China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint D. Workflow description Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly. E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.

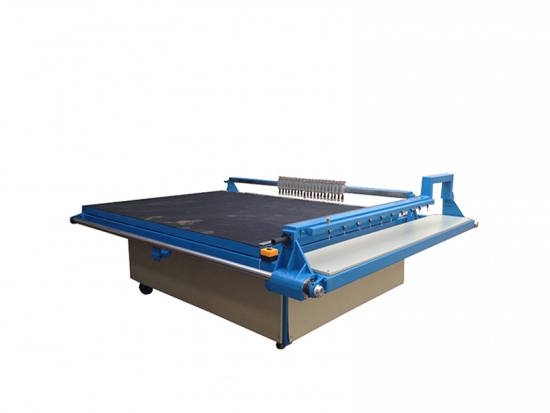

Semi automatic glass cutting machine overpass type double bridge precision cutting table with multiple knife cutting with high efficiency, precision accurate, suitable for large glass disposable cutting into small pieces. This machine press the control panel on the automatic device only, stepper motor drives the double beam automatic cutting, cutting double automatic homing after completion.
Item NO.:
SY-3826Color:
Steel Blue or CustomizedLead Time:
15 daysWarranty:
1 YearSize Range:
25*25mm-3660*2440mmProcessing Range:
Float glassDouble beam moving cutting mode
Walking part: for X, Y axis two-way straight line movement, X axis stepper motor drive beam at the speed of slow cutting, cutting after rapid return to workpiece origin, and then Y axis work in the same way

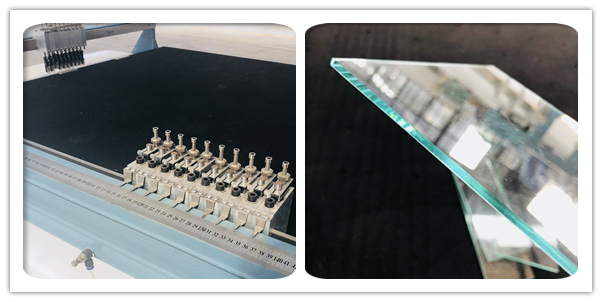

Cutting part: X, Y cutting beam is equipped with a number of cutting knife box, can be adjusted between the distance. To achieve the size of the cut glass change
All of the above actions are centralized controlled by PLC, the display interface is displayed in Chinese language, and the input data is directly controlled
Parameter
Cutting maximum size: 3750 x 2500 (mm) (special specifications can be customized according to customer needs)
Cutting minimum size: 20 x 20 (mm) (special specifications can be customized according to customer needs)
Working table: 4000 x 2600 (mm)
Cutting thickness: 2-19mm
Operator: 1-2 people
The cutting efficiency: 1-2 large / min
Cutting parallelism: less than 0.2mm
Diagonal: less than 0.3mm
Fan power: 4.5kw
Motor power: 1.75KW
