  • Ruilong Automatic Laminated Glass Cutting Machine
    Automatic Laminated Glass Cutting Machine

      This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.  A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.   B.Machine Parameters  1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control   C. Machine configuration(Can specify configuration)  1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT  5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission  shaft:  China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint  D. Workflow description  Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly.   E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.

  • automatic glass cutting machine
    NC Glass Cutting Machine

    SY-8080 NC glass cutting machine could cut very small irregular glass. A popular machine for small factory and studio.

  • Ruilong CNC Glass Cutting Machine
    CNC Glass Cutting Machine

    CNC glass cutting machine consists of full automatic glass cutting machine, CNC glass loading machine, glass breaking machine.

  • ultra thin glass cutting machine
    Ultra thin Glass Cutting Machine

    This automatic ultra thin glass cutting machine is used for cutting ultra thin glass. Applicable to OLED glass, photoelectric glass, liquid crystal glass, display glass, mobile phone glass, touch screen glass, OGS process of ultra-thin glass cutting, high cutting efficiency, good accuracy, high yield, and easy to operate, the operator has no technical requirements.

  • Glass Edging Machine

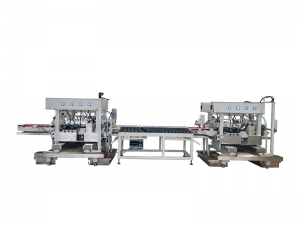

    Glass Edging Line Four Side

    C shape glass grinding machine This machine consists of two set of straight line round shape edging machine (4 spindles/ 6pindles / 8spindles) 90 degree automatic steering table. Adopting PLC control system, Set the parameters to control the processing width and speed through the interface, High-precision double linear guide and double ball screw transmission structure and control system ensure the accuracy of the processing dimensions, It is suitable for the processing of thin glass within the thickness of 0.5~5mm. It has high milling speed and transfer efficiency.Suitable for the processing of thin glass with a thickness of 0.5~5mm, high processing speed and high transfer efficiency, suitable for deep processing of industrial glass, used with washing machines, screen printing lines, tempering lines, etc. Main structure The machine consists of bed, fixed grinding wheel group, moving grinding wheel group, lifting structure, circulating water cooling system, glass conveying structure, transverse opening and closing structure, inlet positioning structure and control system. The machine is treated by high temperature annealing after welding by bed, fixed grinding wheel group and moving grinding wheel group, and the internal stress is eliminated with aging treatment, the working time is not deformed, and the quality of the processed glass is guaranteed to be stable. The upper beam adopts the integral lifting structure, which is advantageous to replace the grinding wheel conveniently. Technical parameter Max. Glass size 1000mm (could do customized) Min. Glass size 100mm (also could do 55mm need customized) Grinding glass thickness 0.5-19mm Speed: 0.67-10m/min Power: 13.7kw Voltage: 380V/50hz Parallelism ≤0.20mm/m Diagonal ≤0.40mm/m Weight: 3500kgs Dimension:  2420*2510*1650mm Equipment configuration Spindle motor: Xindongya Guangzhou Transmission, switch on and off, lift motor: Shanghai Ruijin Wire Rod: TBI taiwan Guide rail: HIWIN taiwan Transmission optical shaft: Wuxi chrome plated hard shaft Other electrical devices: circuit breaker (Zhengtai); encoder (Omron); AC contactor (Siyan Technology) Synchronous wheel: imported 2A12 aluminum alloy Synchronous belt: Italian Babel seamless steel wire belt Grinding wheel: domestic high-quality diamond wheel and Italy imported resin wheel. Transfer wheel: PU rubber wheel

View :

  • Glass Edging Machine
    Glass Edging Line Four Side
    C shape glass grinding machine This machine consists of two set of straight line round shape edging machine (4 spindles/ 6pindles / 8spindles) 90 degree automatic steering table. Adopting PLC control system, Set the parameters to control the processing width and speed through the interface, High-precision double linear guide and double ball screw transmission structure and control system ensure the accuracy of the processing dimensions, It is suitable for the processing of thin glass within the thickness of 0.5~5mm. It has high milling speed and transfer efficiency.Suitable for the processing of thin glass with a thickness of 0.5~5mm, high processing speed and high transfer efficiency, suitable for deep processing of industrial glass, used with washing machines, screen printing lines, tempering lines, etc. Main structure The machine consists of bed, fixed grinding wheel group, moving grinding wheel group, lifting structure, circulating water cooling system, glass conveying structure, transverse opening and closing structure, inlet positioning structure and control system. The machine is treated by high temperature annealing after welding by bed, fixed grinding wheel group and moving grinding wheel group, and the internal stress is eliminated with aging treatment, the working time is not deformed, and the quality of the processed glass is guaranteed to be stable. The upper beam adopts the integral lifting structure, which is advantageous to replace the grinding wheel conveniently. Technical parameter Max. Glass size 1000mm (could do customized) Min. Glass size 100mm (also could do 55mm need customized) Grinding glass thickness 0.5-19mm Speed: 0.67-10m/min Power: 13.7kw Voltage: 380V/50hz Parallelism ≤0.20mm/m Diagonal ≤0.40mm/m Weight: 3500kgs Dimension:  2420*2510*1650mm Equipment configuration Spindle motor: Xindongya Guangzhou Transmission, switch on and off, lift motor: Shanghai Ruijin Wire Rod: TBI taiwan Guide rail: HIWIN taiwan Transmission optical shaft: Wuxi chrome plated hard shaft Other electrical devices: circuit breaker (Zhengtai); encoder (Omron); AC contactor (Siyan Technology) Synchronous wheel: imported 2A12 aluminum alloy Synchronous belt: Italian Babel seamless steel wire belt Grinding wheel: domestic high-quality diamond wheel and Italy imported resin wheel. Transfer wheel: PU rubber wheel
  • glass edging machine

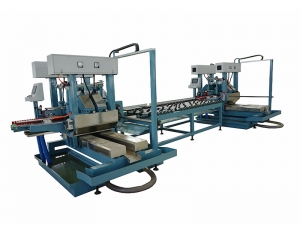

    Double Side Edging Machine
    Glass Edging Machine. Inlet and outlet conveyors use timing belts for very long life and precise operation, and the machine features a lubrication system for the front and rear conveyor rails.
  • glass edging machine
    Double Side Edging Machine
    Glass Edging Machine. Inlet and outlet conveyors use timing belts for very long life and precise operation, and the machine features a lubrication system for the front and rear conveyor rails.
  • glass edging machine
    Pencil shape edging processing line
    Quality glass edging machine machines at an AFFORDABLE price, gives you the best value in the industry.  Ruilong glass edging machines are suitable to polish all three faces of the edge of any glass or mirror products.  The machines are designed considering the long term working period, with very user friendly operations and all come with a 1 year warranty.
