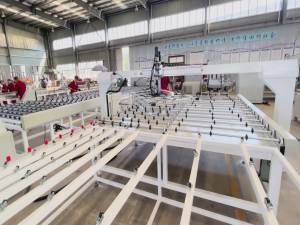

    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  • Round Glass Grinding Machine
    Instrument Glass Cover Grinding Machine

    This equipment is a non-standard customized equipment. The main customer group is instrument glass, which is used for the chamfering process of round glass.。

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table

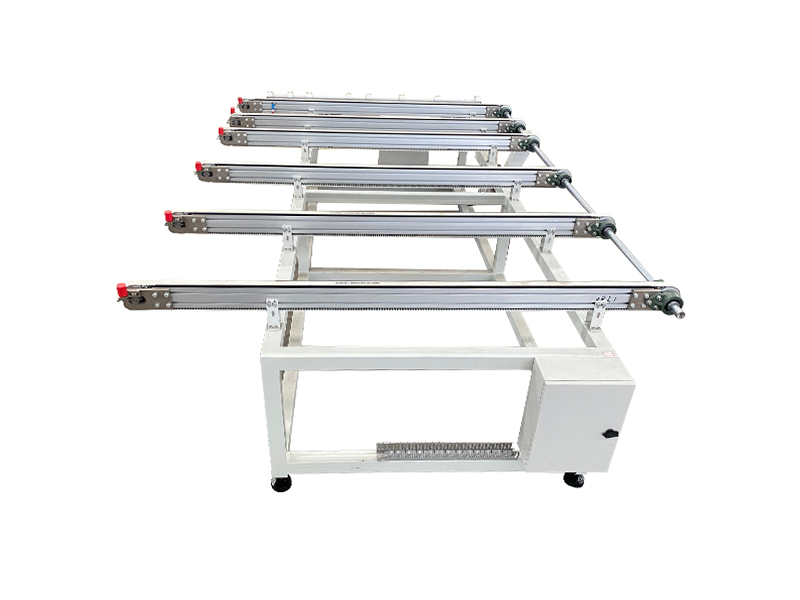

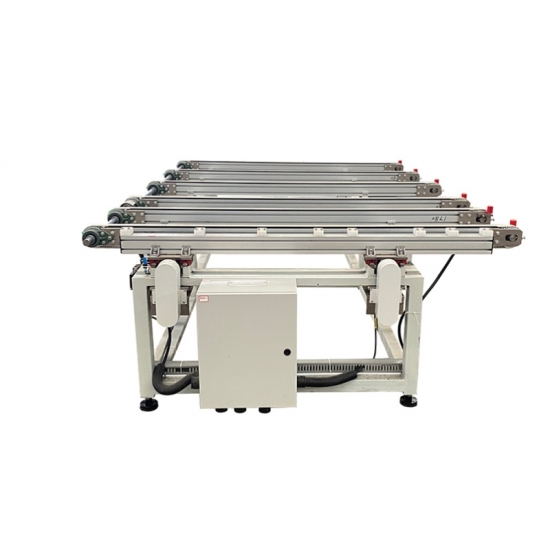

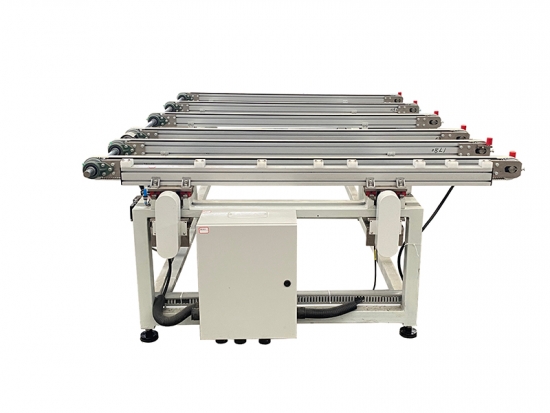

    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

Glass Transfer Table

This table is for glass transmission, the table size is customized according to customer's requirements.
  • Color:

    Steel blue
  • Shipping Port:

    Shanghai/Nanjing
  • Lead Time:

    15 days
  • Warranty:

    1 year
  • Size Range:

    customzied
  • Processing Range:

    Flat glass
Product Details


Structural description:

Horizontal structure; motor drive, variable frequency speed regulation; synchronous belt drive; sprocket-chain/bearing-bearing seat; one-way motion; PLC control; touch screen operation.



Perform actions:

Receiving the small plate glass conveyed by the last machine, the transmission speed can be adjusted, and the positioning grid is set according to the situation.


Processing parameters:

Glass size: customized

Shipping itinerary: customized on demand

Maximum transmission speed: 10-20m / min

Remarks: High-precision and high-efficiency transmission needs to be customized (servo motor)




Mechanical configuration:

Sprocket chain: special high precision reinforced shape

Synchronous pulley: aluminum

Synchronous belt: Foshan

Sheet metal cover: spray plastic

Bearings: domestic

Electrical configuration (configuration can be specified):

PLC: Taiwan Delta

Touch screen: Taiwan Delta

Inverter: Taiwan Delta

Transmission motor: domestic gear reducer motor or Delta servo

Proximity switch: FC

The main low-voltage electrical components: CHINT

Control cable: domestic flexible cable

Switching power supply: Taiwan Delta
