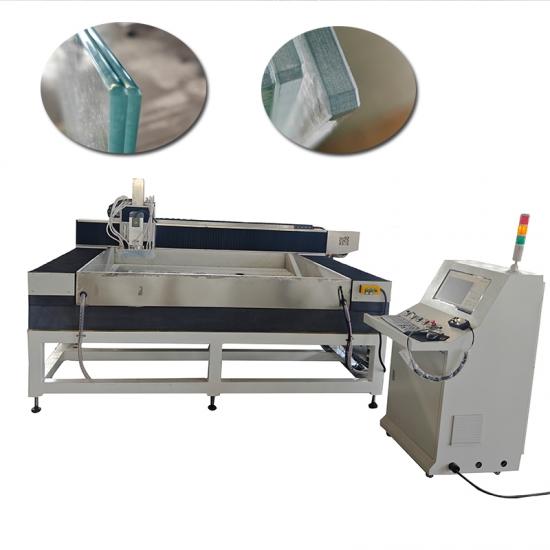

CNC center edge grinding machine

This machine can process glass of any shape and can automatically change the grinding head to achieve different grinding effects.

Brand:
Ruilong
Item NO.:
CNC Grinding
Payment:
50% deposit, 50% before shipment
Product Origin:
China
Color:
Customized
Shipping Port:
Shanghai
Lead Time:
30-35 workdays
Warranty:
1 year

contact now

Product Details

Configuration Details
Machine Construction: Large gantry milling machine with self-welding technology using national standard square tubes to ensure parallelism
System: Taiwan Delta
Computer: Lenovo Industrial Control, Windows 7
Servo Motor: Taiwan Delta, X-Y-Z three-axis
Inverter: Taiwan Delta
Pneumatic Components: Taiwan AirTAC
Water Pump: Custom-made submersible pump
Guide Rails: Taiwan Hiwin
Screw: Taiwan TBI
Spindle Motor: ZCMT high-speed motor, 9000 rpm
Fixture: Custom-made vacuum cups
Cooling System: Circulating cooling water, abrasive can be added upon request
Cooling Device: Universal nozzle
Low-voltage electrical components: China Chint
Photoelectric switch: Taiwan Yangming
Waterproof housing: Stainless steel
Water-related parts: Electroplated, chrome-plated

Water tank: 304 stainless steel

Bearings: Japan NSK

Technical Parameters
Spindle Speed: 0-25mm/min (adjustable based on machining requirements)
Maximum Machining Speed: 6000mm/min
Standard Size: 40-445s/pcs (400*500mm*3mm)
Maximum Machining Size: 1000*1500mm; tooling changes require fixture replacement
Minimum Machining Size: 120*120mm
Machining Thickness Range: 1.1-12mm
Positioning Accuracy: ±0.05mm/500m
Machining Accuracy: ±0.1mm/500m
X-Y-Z Effective Travel: 1500×1000×80mm, customizable
Machine Power: 8.5kW
Machine Operating Voltage: 380V/50Hz/3phase
Machine Weight: 4200kg
