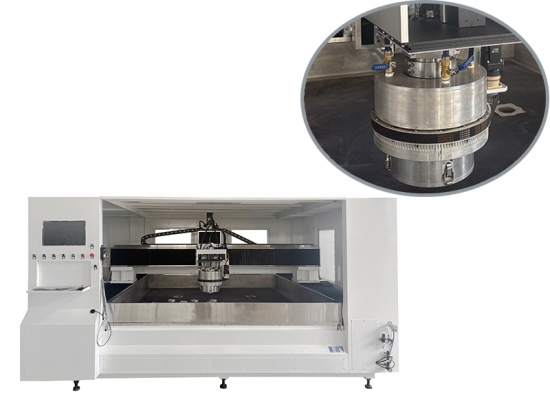

Ultra-thin Special-shaped Waterless Edge Grinding Machine

The SY-1812 processing machine is a heavy-duty, high-precision processing equipment tailored for industrial precision machining and large-size material production. Featuring a semi-enclosed safety structure and integral rigid frame, the machine runs stably with low vibration, ensuring consistent machining quality and long service life. It is widely suitable for batch processing and precision shaping of various materials.

Brand:
Ruilong

contact now

Product Details

Core Configuration This machine adopts the mature Shanghai Weihong control system for stable operation and easy operation and debugging. It is equipped with a 7.5KW water-cooled spindle, supporting pneumatic automatic tool change. The spindle speed ranges from 12000rpm to 24000rpm, matched with standard BT30 tool holders to ensure fast, stable and high-precision tool changing. It is configured with high-precision HIWIN/TBI lead screws and linear guides, paired with Inovance servo motors (X/Y axis 1.8KW, Z axis 0.75KW with brake) and a 11KW inverter. Equipped with Japan NSK P4-grade bearings and automatic 00# lithium grease lubrication system, the equipment effectively reduces wear and realizes long-term stable continuous operation.

Precision & Processing Performance The equipment delivers excellent machining accuracy with a positioning accuracy of 0.015mm/300mm, repeated positioning accuracy of 0.01mm, and overall machining accuracy of ±0.1mm/500mm, with a maximum chipping volume of only 0.3mm. It supports a processing thickness of 0.3mm-15mm and adapts to 90-125mm diameter grinding wheels. The working stroke reaches 2100×1550×170mm with a maximum machining size of 1800×1220mm. The maximum empty running speed is 20m/min and the maximum processing speed is 9m/min, achieving an optimal balance of high efficiency and high precision.

Machine Structure & Basic Parameters Built with high-strength aluminum metal bed and beam, the whole machine weighs 65000KG with strong rigidity and stability. The worktable bears a maximum load of 200KG with a table height of 1400mm for convenient loading and unloading. The overall dimension is L3360×W3900×H2220mm (including water tank). The machine adopts standard industrial power supply of AC 380V, 50Hz and 13KW total power, which is convenient for factory installation and mass production.
