  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

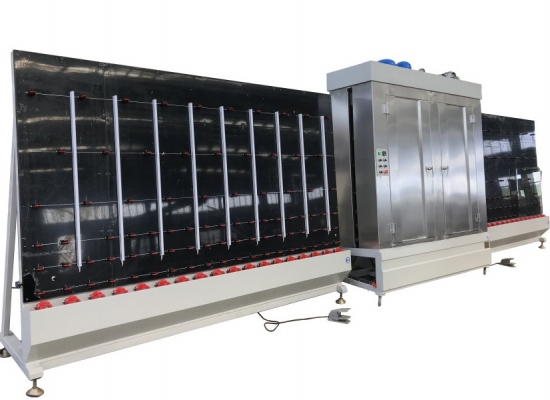

  • vertical washing machine

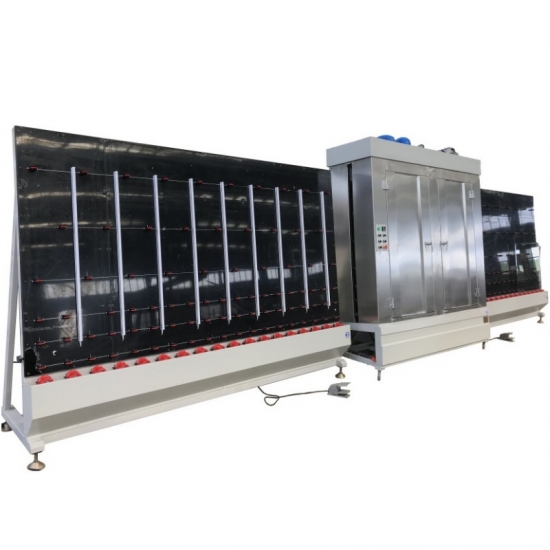

    Top open vertical washing and drying machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

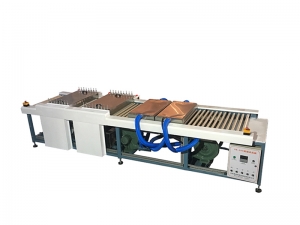

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

  • cutting laminated glass
    Automatic Laminated Glass Cutting Machine

    The only patent for laminated glass cutting  in China This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.  A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.   B.Machine Parameters  1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control   C. Machine configuration(Can specify configuration)  1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT  5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission  shaft:  China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint  D. Workflow description  Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly.   E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.

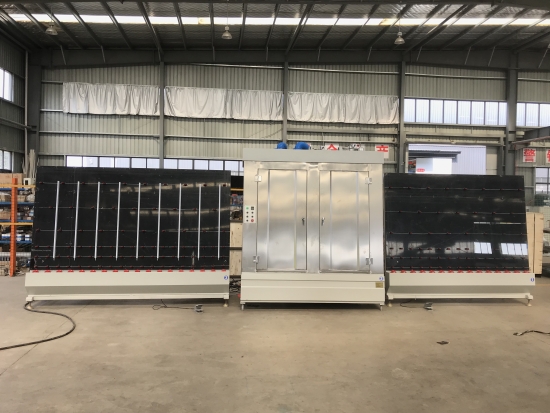

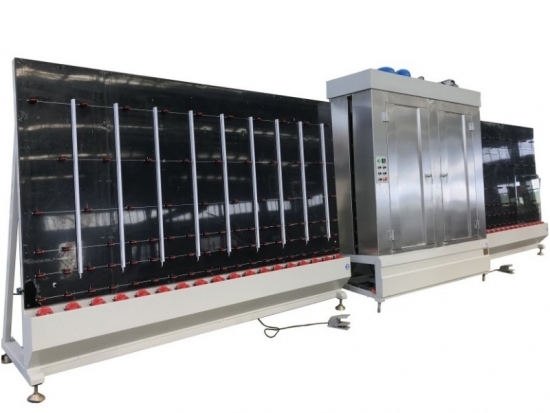

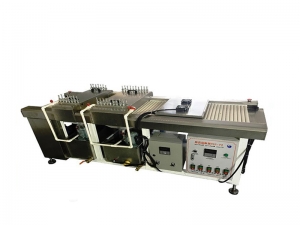

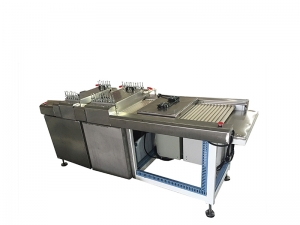

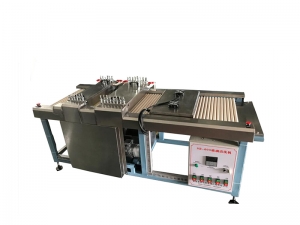

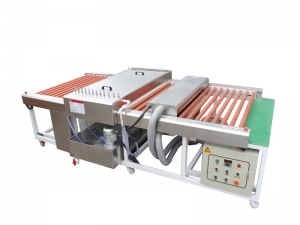

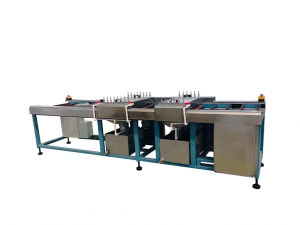

Top open vertical washing and drying machine

Glass feed section-glass cleaning section-glass drying section-glass

discharge section-assistant inspection section.


  • Item NO.:

    SY-1600
  • Payment:

    T/T
  • Price:

    $13230/PCS
  • Product Origin:

    China
  • Shipping Port:

    Shanghai sea port
  • Lead Time:

    25 days after receive initial payment
  • Warranty:

    1 year
  • Size Range:

    6000×2100×2680 mm
  • Processing Range:

    300*500-1600*2000 mm
Product Details

  https://www.youtube.com/watch?v=txBkeLyhyio




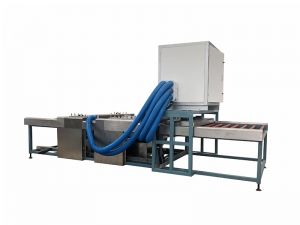

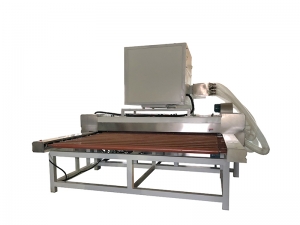

Composition of equipment


waterway system: water tank, water pump, filter, water pipe,
etc .,200 L water storage tank, water flow control device, horizontal
sensor and impurity removal device under cleaning.
Windway system: fan, air duct, air knife and so on, the air knife can
adjust the gap according to the drying effect.

Equipment functions

The machine is mainly used for glass cleaning, drying, can be connected
to use.

Equipment operation process

1)、 the glass from manual or mechanical hoisting to the feed platform,
foot switch control equipment start;
2)、 glass into the cleaning section, after two groups of brush brush
wash;
3)、 glass into the drying section, by a pair of high-power wind knife
dry surface;
4)、 glass into the discharge section, with the inspection section of
the lamp tube, inspection cleaning effect;
5)、 glass or flow sheet to other equipment, the cleaning process of
single glass is over.

Equipment performance

1)、 equipment speed adjustable (brush and glass transmission speed);
2)、 cleaning section with sponge roll, with high pressure spray
(circulating water, water temperature can be heated);
3)、 spray for the spray nozzle arrangement, effectively cover the
front and rear surface of glass, effectively remove glass surface
pollutants (confetti, wood chips, dust, etc);
4)、 a set of high pressure air knives for drying glass surface,
fan rear, and equipped with air cooling system;
5)、 equipment is equipped with automatic manual mode, customers
can freely switch according to actual production needs.

Technical parameters (customizable)

Scope :300*500-1600*2000 mm processing


Thickness range: mm 3-12


Processing speed: m/min 0-6


Size :6000×2100×2680 mm


Fan Power: Domestic 7.5 kw


Brush motor: domestic kw 0.55


Domestic 0.55 kw transmission motor


Pump: domestic kw 0.75


Heating device for water temperature: domestic 2 kw


Lighting: kw 0.32 for fluorescent tubes


Voltage :380 v/50Hz


Water temperature control range :40-60 o C (±5 oC )(control panel


shows and adjusts temperature parameters)
