This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;
Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.
The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.
This table is for glass transmission, the table size is customized according to customer's requirements.
The only patent for laminated glass cutting in China This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy. A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system. B.Machine Parameters 1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control C. Machine configuration(Can specify configuration) 1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT 5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission shaft: China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint D. Workflow description Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly. E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.
Item NO.:
SY-2500Color:
Steel Blue or CustomizedLead Time:
25 daysWarranty:
1 YearSize Range:
400*400-2500*3500Processing Range:
flat glass, low-e glass

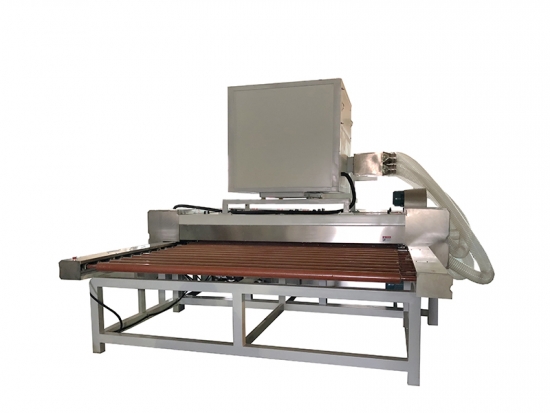

The feeding section is composed of 10 rubber rolls and 1 set of high pressure spray pre washing parts.
The cleaning and drying section can be integrally lifted, it consists of 21 cots, 2 sets of lifting hard brushes, 1 set of soft brushes, 2 sets of high pressure air knives, and 3 sets of high pressure spray.
There are one set 22KW high pressure fans, 3 sets high pressure water pump, 2 set brush motor, 1 set cleaning section of lifting motor, 1 set rubber roller drive motor, bevel gear drive.
Machine size length 5800mm, width 3300mm, height 2700mm. Rubber roll diameter is 75mm. Loading section rubber roll center distance is 175mm. The main machine frame is made of 80*60*3mm square pipe, rubber roll bearing is fixed on aluminum alloy square tube material, make sure the rollers are on flat surface.
Machine description:
1.SY-2500 washing machine adopts a horizontal structure, and the feeding place with stainless steel water tank and a high precision water spray, so that the rubber roll can realize automatic cleaning function and improve the clean effect.
2.The transmission adopts gear drive, frequency conversion speed regulation, digital display, easy operation, and it is beneficial to connect the production line.
3.Washing section and drying section can up and down integrally, the largest up height is 400mm, easy to clean and are inside rubber rollers.
4.Use 3 pairs brushes, the front of two scrub brush moved by cylinder, the third soft brush can brush Low-E glass.
5.Air drying section use profession design two pairs wind knife, big wind with good effect.
6.All machine use stainless steel material.
Main Parameter:
Model:SY-2500
Washing Speed:1.5-8m/min
Max. Washing size :2500*3500mm
Min. Washing size :400x400mm
Glass thickness :2-25mm
Full machine Power:27kw
Machine Size :5800x3300x2700mm
Machine Weight:3000kg
