  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing and drying machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

  • cutting laminated glass
    Automatic Laminated Glass Cutting Machine 合わせガラス切断機 접합 유리 절단기

    The only patent for laminated glass cutting  in China This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.  A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.   B.Machine Parameters  1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control   C. Machine configuration(Can specify configuration)  1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT  5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission  shaft:  China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint  D. Workflow description  Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly.   E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.

Chemical Mixing Washing and drying Mahcine

SY-500-2 Special accessories are assembled to accept strong acid or alkali to clean the glass.

  • Item NO.:

    SY-500-2
  • Color:

    Steel Blue or Customized
  • Lead Time:

    25 days
  • Warranty:

    1 Year
  • Size Range:

    30*30-450mm
  • Processing Range:

    flat glass, thin glass
Product Details



Appearance & Configuration

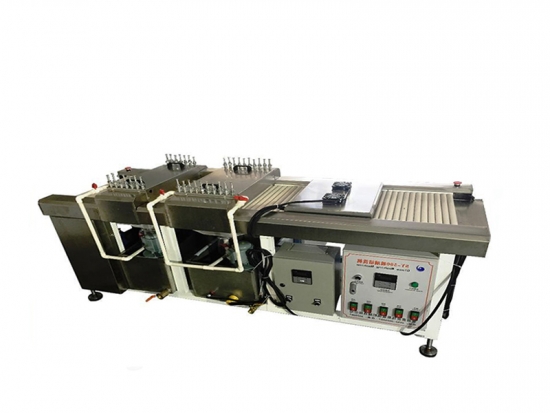

This machine is horizontal structure, delicated outlook and  whole is made of stainless steel rectangular square tube welded. Washing and drying section are covered by 304 stainless steel. First section is two pairs brush and spraying (chemical mixing washing), second section is four pairs brush(pure water or tap water washing) and 3 pairs sponges, stainless steel water tank.


Machine Description

SY-500 glass washing machine is suitable for washing and drying electronics, household appliances, optical glass or lenses.

This machine is equipped with a stepless speed changer and can adjust the washing speed arbitrarily. The drive part is controlled by a speed regulating motor, the speed of glass transmission can be adjusted according to requirement of technology, and stepless speed regulation can be realized. Machine is driven by dense drum and has a wide range of machining area.  When cleaning, the glass or the lens is placed on the horizontal conveying roller, and after passing through the feeding section, first washing section (chemical mixing washing), second washing section(water washing), water absorption section, drying section and discharge section.

Washing sections adopt the transmission mode of the combination of gear and chain. , and with some brushes and sponges. The brushes and sponges position could move up and down according to different glass thickness. The heating box is equipped with heating rod and fan to supply air, temperature controller adjustable temperature, temperature range: 20-80℃, and dried by a fan.

This machine is equipped with circulating water system, there are intake water tank and after washing tank to maintain cleanliness of the circulating water, clean the glass with circulating water at one time.

Note: 1.This machine is customized glass washing machine: The cleaning liquid for NH4OH(30%) + H2O2(20%)+water(50%) can be used normally.

2.Cleanliness requirements: unclean can't be seen by the naked eye



Technical and configuration

Washing minimum glass size:40*40mm (Or customized)

Washing maximum glass size 490mm (width) (Or customized)

Glass thickness: 0.3-3mm

Whole frame of equipment: stainless steel material

Transmission Top Roller: 100%  Nitrile butadiene Rubber material

Brush: DuPont nylon silk imported from USA

Sponge: PU Sponge imported from Taiwan

Transmission chain: stainless steel material

Gear: gear steel chrome plating

Brush drive reducer motor: 0.37 KW*2, Anhui Yonghua motor manufacturing

Infinitesimal transmission: 0.37KW, Guangzhou Weilifeng

Heating pipe: stainless steel 1KW 6

Water pump: stainless steel pump 0.55 KW*2

Electrical components: CHINT, China

Voltage: 380V/50HZ

Weight: 1100kgs

Dimension:2300*750*900 (mm)


Start the water pump first, turn on some switches of suction roller, after the rollers are fully absorbent water then turn off the switch. Start the cleaning water switch→ Fan→ Heating→ Brush→ Transport.

The pressure of copper screw on spring can be adjusted in proper position according to the thickness of glass during cleaning.
