new products
  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  • Round Glass Grinding Machine
    Instrument Glass Cover Grinding Machine

    This equipment is a non-standard customized equipment. The main customer group is instrument glass, which is used for the chamfering process of round glass.。

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

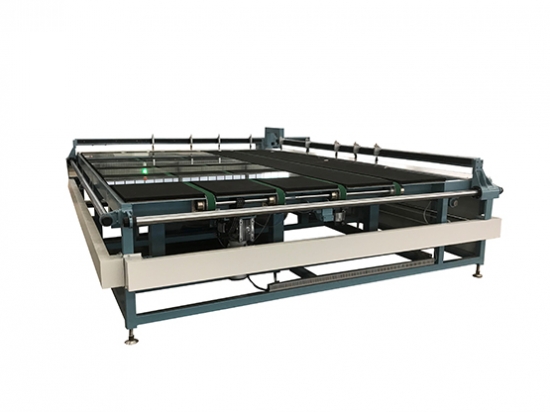

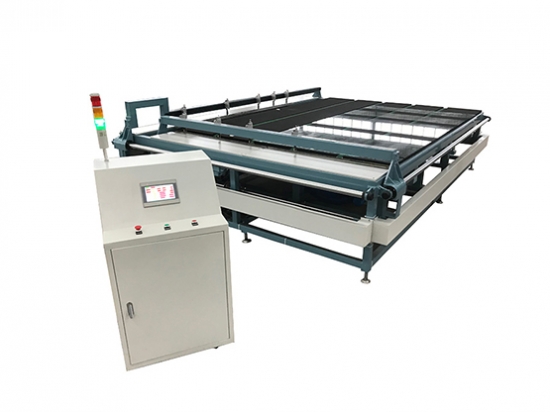

Semi automatic Glass Cutting Machine

Semi automatic Glass Cutting Machine with conveyor belt.
  • Item NO.:

    SY-3525
  • Color:

    Steel Blue or Customized
  • Shipping Port:

    Shanghai/Nanjing
  • Lead Time:

    3 weeks
  • Warranty:

    1 Year
  • Size Range:

    1000*1000----3550*2550mm (can be customized)
  • Processing Range:

    Float glass
Product Details



Parameters

Cutting size: 1000*1000----3550*2550mm (can be customized)

Thickness range: 2----15mm

After cutting size: 50*50mm (can be customized)

Belt transmission speed: 0-10m/min (adjustable)

Cutting beam speed: 0-5m/min (adjustable)

Beat: Within 25 seconds (estimated by maximum board)

Cutting parallelism: 0.15mm/m

Cutting diagonal: 0.45mm/m



Configuration

Motor: Japan Yaskawa Servo

Guide rail: Taiwan

Touch screen: Mitsubishi, Japan

PLC: Mitsubishi Japan

Inverter: Mitsubishi, Japan

Pneumatic components: Japan SMC

Main electrical original: Schneider

Proximity switch: Schneider

Fan: domestic

Knife wheel: Japan toyo

Countertop: industrial felt + composite board
