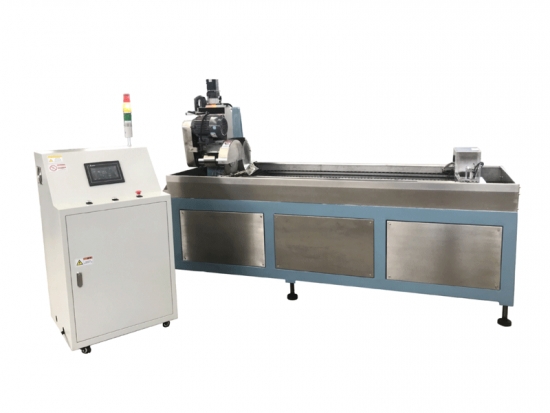

Glass Tube Cutting Machine (Saw Cutting)

It is suitable for linear cutting of brittle hard non-metallic materials such as capillary glass, glass rod, quartz tube, etc. The saw blade has adjustable running speed, and has the characteristics of smooth cutting, small chipping and simple operation. Automatic feeding, product length can be set directly. Could add baskets and drying system according customer’s requirements

  • Item NO.:

    Sy-1500
  • Payment:

    T/T
  • Color:

    Steel Blue (Customized)
  • Shipping Port:

    Shanghai
  • Lead Time:

    30 days
  • Warranty:

    1 Year
  • Size Range:

    ø2- ø10
  • Processing Range:

    glass tube, glass rod
Product Details

It is suitable for linear cutting of brittle hard non-metallic materials such as capillary glass, glass rod, quartz tube, etc. The saw blade has adjustable running speed, and has the characteristics of smooth cutting, small chipping and simple operation. Automatic feeding, product length can be set directly. Could add baskets and drying system according customer’s requirements.



Basic configuration

1.Frame: Aluminum profile frame

2.Guide rail: Taiwan HIWIN

3.Screw: Taiwan HIWIN

4.Conveying motor: Taiwan Delta servo motor. 750W

5.Saw blade lifting motor: Taiwan Delta servo servo motor. 750W

6.Saw blade rotating motor: 3KW Dongguan

7.Water pump: 380W Shanghai submersible pump

8.Cover: stainless steel.

9.Saw blade: direct 300MM 200 mesh (optional)



Machine parameters

1.Maximum cut tube length: 1500±10mm

2.Minimum cut length:100mm

3.Maximum tube diameter: ø10.0±0.05mm

4.Minimum tube diameter: ø2±0.05mm

5.Cutting accurate: ±0.1mm

6.Cutting efficiency: 20s-25s/cut

7.Cutting width: 200mm-250mm

8.Loading System: manual loading

9.Machine Dimensions: 3540*878*1700mm

10.Machine Weight: 1200Kg

11.Compress Air: 0.6KPa

12.Coolant: 1 inch

13.water tank size: 1200*500*380mm

14.Input Power: 3phase 220V60Hz VAC 15A (need customer supply transformer)

15.cutting speed: 0-3000 rev / min, adjustable
