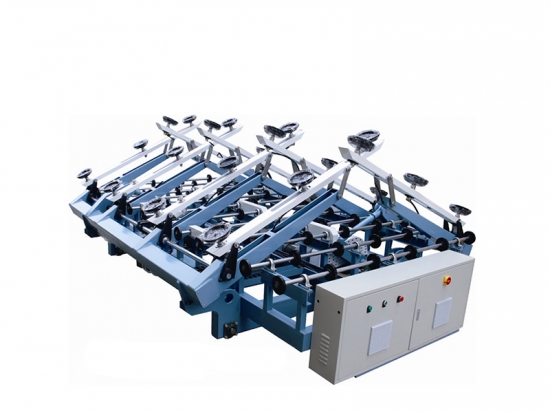

Double Flip Loading Machine

Double flip loading machine with loading and unloading
  • Item NO.:

    SY-4228
  • Color:

    Steel Blue or Customized
  • Lead Time:

    20 days
  • Warranty:

    1 Year
  • Size Range:

    customized
  • Processing Range:

    flat glass
Product Details




Performance and working principle of equipment

Mainly used for automatic glass loading and transmission, the back can be connected to glass cutting machine, glass edging machine, glass cleaning machine, glass hollow processing equipment and so on. When the glass is placed in the specified position, the sheet sucker is automatically turned up and placed on the transfer roller table after the glass is adsorbed, and the glass is automatically transported to the main machine of the cutting machine.


Note: the number of glass can be automatically controlled, that is, before cutting the number of cut glass, after the completion of the cutting manual operation on the loading machine can continue to take pieces, to avoid human factors to cut the glass.


Equipment Parameters

Flip sprocket chain: special high-precision reinforced type.

Transmission roller: imported pu material

Vacuum sucker: imported  natural rubber material (double adsorption structure)

Transmission / flip motor: Bonnie motor

Vacuum pump: Wenling stone bridge vacuum pump

Bearing: Harbin, China.


Electrical components

PLC controller: Panasonic Japan

Frequency converter: Taiwan Delta

Optoelectronic switch: Shanghai SONON

Circuit breaker and motor protector: China CHINT

Control elemer: imported flexible shielded elemer

Contactor: Siyan technology

Main control vacuum solenoid valve pneumatic original: Zhejiang Yongqing manufacturing


Technical Parameter

Loading glass size range: minimum size: 1500*1000mm, maximum size: 3700*2500mm

Loading thickness 3-25mm

Fastest loading time 40s

Transport speed 0-40m/min (adjustable )

Maximum suction depth: 700mm

Maximum loading weight : 1000KG

Number of loading arm on one side: 4 arms

Number of suckers on one arm :3

Flip side: double

Loading station: double

Voltage: 308V/50hz (could be customized)

Power: 10KW

Compressed air: 0.3~0.5Mpa

Vacuum pressure: -70 ~ 90 KPA (adjustable according to glass thickness)

X axis conventional walking speed: 25m / min (variable frequency adjustable)

Y-axis conventional walking speed: 5 m / min (variable frequency adjustable)


Technical description:

Walking  -- Flip arm -- Automatic induction glass -- Sucker adsorbed glass -- The lifting of the sucker separates the glass from the rack -- Return to original -- Reverse arm reposition -- Conveying glass


Program settings: can automatically set the loading pieces and loading station order. The equipment carries on the movement automatically, the automatic takes the piece, the automatic conveys.

Position walking mode: it can automatically adjust zero position, automatically detect workstations, and automatically return to original position

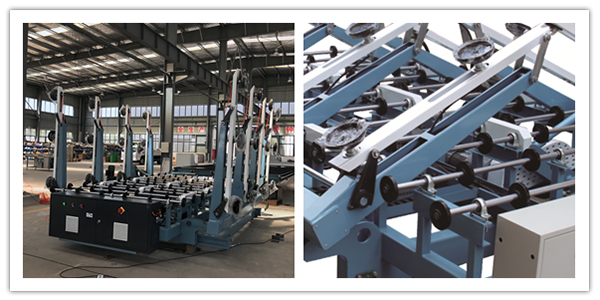

Related pictures
