  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  • Round Glass Grinding Machine
    Instrument Glass Cover Grinding Machine

    This equipment is a non-standard customized equipment. The main customer group is instrument glass, which is used for the chamfering process of round glass.。

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

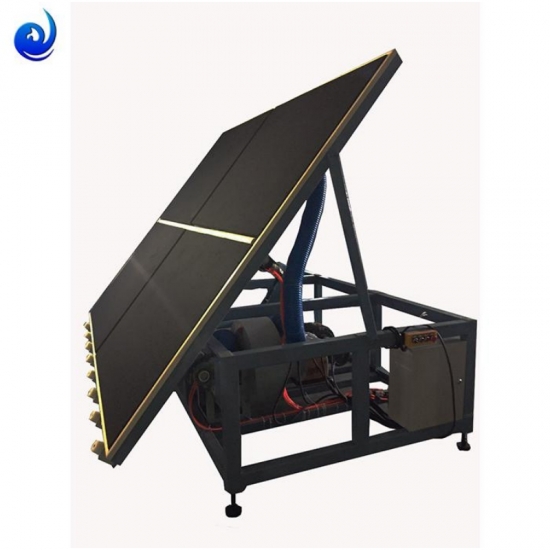

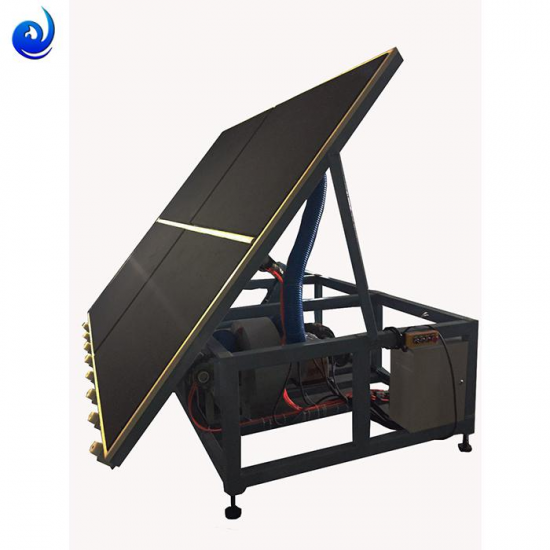

Tilt Turnover type air flotation breaking table

The machine is designed to facilitate the turning of glass from the glass

rack and use for break off glass.

  • Item NO.:

    SY-3024
  • Payment:

    T/T
  • Market Price:

    $6000
  • Price:

    $5850
  • Price Range:

    2 - 5/$5400
  • Product Origin:

    China
  • Color:

    Steel Blue
  • Shipping Port:

    Shanghai sea port
  • Lead Time:

    25 days after receive initial payment
Product Details
The machine is designed to facilitate the turning of glass from the glass

rack and use for break off glass.


https://www.youtube.com/watch?v=qtja0edsXVY


Introduction of the structure

1. Horizontal integral frame: support overturning platform; fixed overturn
system.
2. Turnover type table: with air floating system; Cross breaking system
3. Turnover combination: Tilt Motor and related parts; photoelectric control
system

4 with 8 telescopic positioning cylinders.


Processing parameters

1. Unloading size:0—3000*2400mm
2. Installation:Cross rod
3. Unloading thickness:0.5---22mm

4. Turnover angle:0—87°


Configure
1. Frame: National standard square tube welding
2. Tilt motor: Chengbang motor + brake apparatus.
3. Proximity switch: Sonon
4. Fan motor: Made in China
5. Chain wheel: Made in China
6. Electrical equipment: Greatwall or CHNT products
