This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;
Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.
The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.
This table is for glass transmission, the table size is customized according to customer's requirements.
The only patent for laminated glass cutting in China This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy. A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system. B.Machine Parameters 1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control C. Machine configuration(Can specify configuration) 1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT 5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission shaft: China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint D. Workflow description Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly. E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.
Single side glass grinding machine specifically for cabinet door, diamond door glass.
Item NO.:
SY-1000-4Color:
Steel Blue or CustomizedLead Time:
20 daysWarranty:
1 YearSize Range:
50*50-1500*1000mmProcessing Range:
cabinet door, diamond door glass
Compared with the conventional edge grinder, the processing size is obviously reduced. The minimum j machining size can reach 50mm. For more than 2mm glass can be processed. Exceeding the limit of the traditional edge grinding machine on the market can only process 3mm or more glass. At the same time, this machine can realize the accuracy of parallelism and diagonal accuracy of the processed products. It is the best choice for King Kong door panels, cabinet doors and windows, optics, electronics, glass crafts, glass and other processing industries.

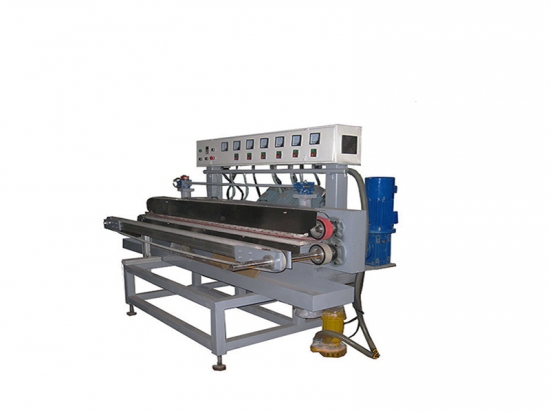

SY-1000-4 horizontal glass straight line edging machine in order to market needs, designed and manufactured in accordance with the principles of bilateral high precision milling machine glass straight line edging machine one of the products. Suitable for grinding the straight edges and corners of flat glass of different sizes and thicknesses, straight edge fine grinding, upper corner chamfering, fine grinding, polishing one time processing, grinding wheel number: total 4 grinding heads, single The sides are arranged in sequence as one resin wheel, one chamfer resin wheel, and two polishing wheels. The 45-degree-high bevel edge grinding on the upper chamfer can be realized, and the polishing is completed once; the bottom edge is ground. The use of mechanical stepless speed regulation, adjustable range, stable speed, can change the feed speed during the grinding process, synchronous belt clamping and transmission of glass thickness 2-12mm for grinding.
Technical Parameter
Glass size (Max: 1500 x 1000) (larger size can be customized)
Glass size (minimum: 50 x 50)
Glass thickness: 2-12
Feeding speed: 0.5m/min-8m/min
Weight: 1800kg
Dimension: 2200*1200*1650mm(L × W × H)
Power: 6KW
Table height: 750mm
Voltage: 380V / 50HZ
Maximum angular grinding quantity: 2 ~ 6mm
Straight edge maximum grinding quantity: 2
Angular angle: 45 degree
Machining accuracy: positive or negative 20s
