new products
  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  • Round Glass Grinding Machine
    Instrument Glass Cover Grinding Machine

    This equipment is a non-standard customized equipment. The main customer group is instrument glass, which is used for the chamfering process of round glass.。

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

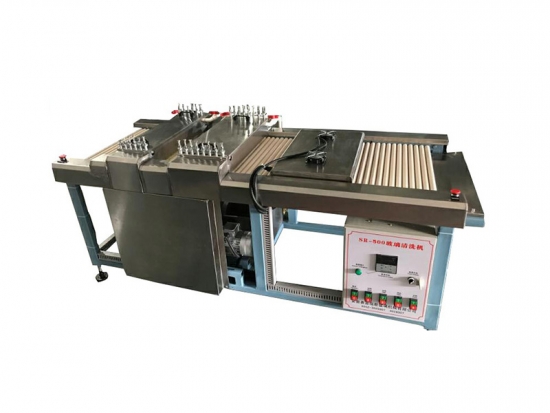

Microscope slide washing machine

This machine is SY-500-2 microscope slide washing machine main for 2.54*72.6*1.1mm

  • Item NO.:

  • Color:

    Steel Blue or Customized
  • Lead Time:

    25 days
  • Warranty:

    1 Year
  • Size Range:

  • Processing Range:

    flat glass, thin glass
Product Details

Frame description:

  • GB square tube frame; Cover is 1.0 mm plate coating
  • Washing, drying and water tank cover is stainless steel
  • Conveying/cleaning/water absorbing sponge roller with high quality material and long service life;
  • Transmission part of speed regulating motor control, speed can be adjusted washing speed
  • Air temperature controller can adjust the temperature.
  • This equipment is designed for intensive drum drive, large range of processing area, a complete circulating water to clean the glass.

Main Parameter:

Transmission rubber roller: 100% nitrile rubber material

Brush: US imports 0.1mm DuPont nylon wire

Sponge: Taiwan imported PU material sponge

Brush drive reducer motor: 0.37KW*2, Anhui Yonghua Motor Manufacturing

Stepless transmission: 0.37KW, Wuxi Delta Electromechanical

Heating tube: stainless steel 1KW*6

Water pump: stainless steel water pump 0.25KW*2, Shanghai

Voltage: 380V/50hz

Total power: 7.61KW

Weight: 500KG

Dimensions: 2300 × 750 × 900 (mm)
