  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing and drying machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

  • cutting laminated glass
    Automatic Laminated Glass Cutting Machine 合わせガラス切断機 접합 유리 절단기

    The only patent for laminated glass cutting  in China This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.  A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.   B.Machine Parameters  1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control   C. Machine configuration(Can specify configuration)  1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT  5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission  shaft:  China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint  D. Workflow description  Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly.   E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.

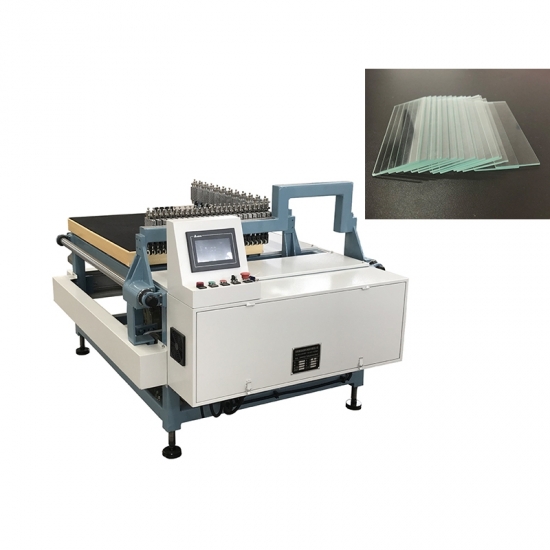

Microscope Slide Cutting Machine (Semi auto)

This machine is cut slide glass. Maximum glass size 930*630mm, cut to 25.4*72.6*1.1mm
  • Shipping Port:

    Shanghai/Nanjing
  • Warranty:

    1 Year
  • Size Range:

    930*630mm
  • Processing Range:

    Microscope slide glass
Product Details

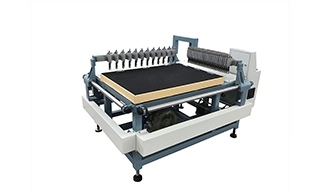

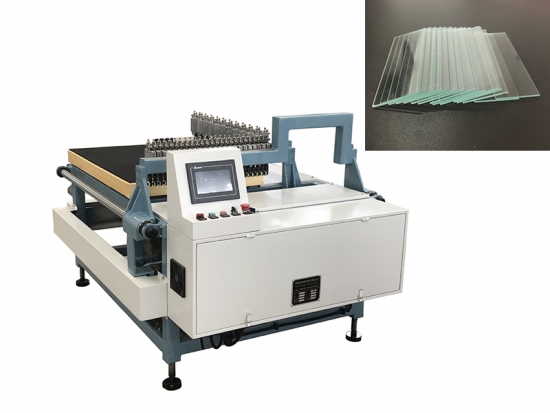

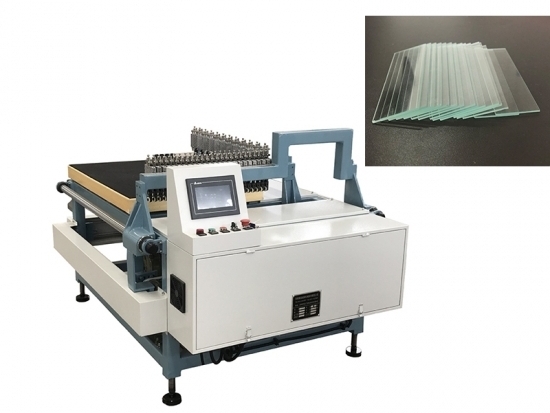

Semi Auto glass cutting machine

A. product description

Semi automatic overpass type double bridge precision cutting table with multiple knife cutting with high efficiency, precision accurate, suitable for large glass disposable cutting into small pieces. Our semi auto glass cutting machine press the control panel on the automatic device only, stepper motor drives the double beam automatic cutting, cutting double automatic homing after completion.



B. operational principle

Double beam moving cutting mode

(1)Walking part: for X, Y axis two-way straight line movement, X axis stepper motor drive beam at the speed of slow cutting, cutting after rapid return to workpiece origin, and then Y axis work in the same way

(2)Cutting part: X, Y cutting beam is equipped with a number of cutting knife box, can be adjusted between the distance. To achieve the size of the cut glass change

(3)All of the above actions are centralized controlled by PLC, the display interface is displayed in Chinese and English language, and the input data is directly controlled



C. parameter

Cutting maximum size: 930*630 (mm)

Cutting minimum size: 76.2 x 25.4 (mm)

Cutter quantity: X-14pcs, Y-26pcs.

Working table: 950x 650 (mm)

Cutting thickness: 1mm

Operator: 1-2 people

The cutting efficiency: 1-2 sheets / min

Cutting parallelism: ≤ 0.15mm

Diagonal: ≤ 0.25mm

Stepper motor: 400W*2 Changzhou Meigang

Aerator: 0.75KW Shanghai

PLC: Delta

Touch screen: Delta

Transmission optical axis: 40 diameter hard shaft

Conveyor belt: Foshan Fu Jia Da belt

Total power: 1.55KW




D. scope of application

Suitable for furniture glass, electric glass, curtain wall glass, hollow glass and other deep processing operations.

Our company's new semi-automatic cutting table has the following advantages compared with the same industry products:


Cutting table operation of motor adopts imported high power stepping motor (25N.m) drive and speed, large torque, no noise, excellent braking performance.
