  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing and drying machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

  • cutting laminated glass
    Automatic Laminated Glass Cutting Machine 合わせガラス切断機 접합 유리 절단기

    The only patent for laminated glass cutting  in China This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.  A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.   B.Machine Parameters  1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control   C. Machine configuration(Can specify configuration)  1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT  5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission  shaft:  China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint  D. Workflow description  Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly.   E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.

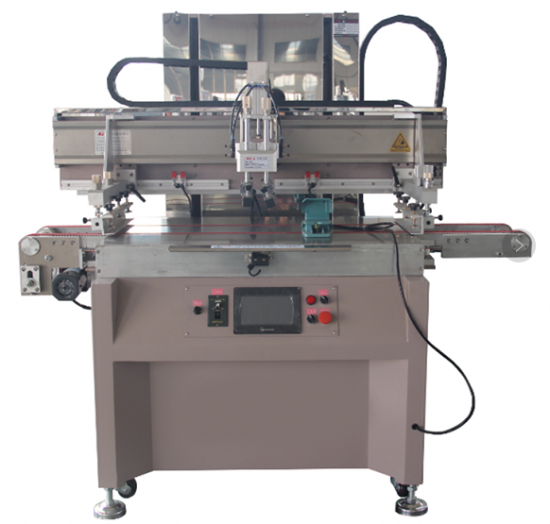

Microscope slide glass silk-screen printing machine

print the color on the slide glass
  • Brand:

    Ruilong
  • Item NO.:

    SY-9060
  • Payment:

    T/T
  • Product Origin:

    China
Product Details

Technical parameters:

https://youtu.be/siNYlcYBxRo

Working table area: 700*1000mm

Maximum printing area: 600*900mm

Maximum screen mounting: 850*1350mm

Substrate thickness: 0-20mm

Printing speed: 850-1000/h

Power: 2.45 kw

Rated voltage: 380V / 50Hz

Dimensions: 1800*1150*1680mm

Weight: 420 kg

Performance characteristics:


1. Vertical lifting structure, screen lifting adopts electric type, left and right movement of printing head adopts electric drive.

2, Pneumatic control printing tool rest lifting, photoelectric eye control stroke, independent adjustment.

3, Set up with manual/semi-automatic/automatic/three modes, printing indirect time digital control.

4, according to the different requirements of the thickness of the ink products can be selected for 3 times printing.

5. Independently designed head lifting device, scraper/return ink knife, screen plate loading and unloading and cleaning are convenient, printing scraper and return ink knife are controlled by brand pneumatic components.

6, double guide post left and right net clamp arm, at the same time installation plate distance adjustment, easy to adjust.

7, through the guide belt transmission of products, 1 can reduce industrial accidents, 2 can reduce manual increase benefits, 3 can

 increase the effective operation rate of equipment.


Machine configuration:


1, Taiwan Shilin frequency converter, printing and screen lifting adopts independent drive.

2, Taiwan on the silver guide rail, slider, high rigidity guide rail, precision guide rail printing guide, lay the printing accuracy of repeat color in 0.03mm.
3. The circuit is made by Chint Electric, the main motor is made by Taiwan Datong Motor, and the elevator reducer is made by Hangzhou Jie brand reducer.
4, stainless steel platform printing, the surface hardness of 600-700HV, X/Y to fine tuning.

5, the diagonal accuracy of the platform is within 0.03mm, 1.2mm suction hole is suitable for film, paper, circuit board, flexible line, PVC, PTE, PC, light guide board, signs and other products with high precision requirements for precision color screen printing.
