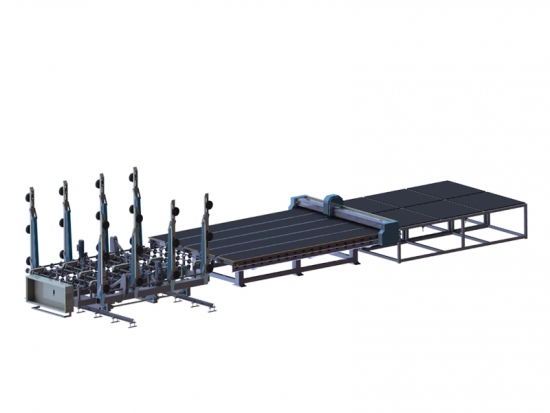

CNC Glass Cutting Line

CNC glass cutting line consists of full automatic glass cutting machine, CNC glass loading machine, glass breaking machine.
  • Item NO.:

    SY-4228
  • Color:

    Steel Blue or Customized
  • Lead Time:

    20 days
  • Warranty:

    Float glass
  • Size Range:

    10*10mm-4200*2800mm
  • Processing Range:

    1 Year
Product Details

SY-4228 Single side single arms loading machine (could do customized )

Equipment main frame / equipment walking system / equipment transmission system / vacuum suction system / mechanical overturn system


Mechanical configuration:

1). flip sprocket chain: special high-precision enhanced shape.

2). transmission wheel: imported PU material

3). vacuum cups: NBR material inlet (double suction structure)

4). transmission / flip motor: Taiwan Bang Chung motor

5). vacuum pump: China-Germany joint venture

Electrical components

1). PLC controller: Panasonic

2). Frequency converter: Delta

3). Photoelectric switch:SONON

4). Control cable: flexible shielded cable.

5). Control electric Lam: imported flexible shield electric Lam

6). Contactor: Si Yan technology.

7). Positive and negative pressure sensor: Japan SMC

Technical parameters

1). The loading glass size scope:Min.: 1500*1500mm Max.: 4200*2800mm

2). Loading thickness: 3~19mm

3). Loading speed: 40-90s/pc (adjustable)

4). Transmission speed: 0~40m/min(adjustable)

5). Maximum suction depth: 650mm

6). Largest on the film attached to the charge: 900KG

7). Arms quantity: Four arms

8). Sucker quantity in single arm: 3 pieces

9). Arm flip: single.

10). Flip station: Single

11). Voltage: 380V/50HZ(Could do customized)

12). Power: 8KW

13). Compressed air:0.3Mpa-0.5Mpa

14). vacuum pressure: -70~ -90Kpa(adjustable according to glass thickness )



SY-4028 Full-auto glass cutting machine

Basic performance

Equipment specifications

Maximum glass cutting size:4200*2800mm

Workbench table: 900±30mm.

Machine weight: 2.5T.

Cutting thickness:3~19mm

Cutting parameters

Straight line parallelism:≤±0.25mm/m

Diagonal accuracy: ≤±0.30mm/m(The above precision is subject to the cutting line accuracy)

Cutter speed: 0~180m/min.(adjustable)

Cutter acceleration ≥3.0m/s²

Cutter holder speed ≥180m/min

Cutter holder acceleration ≥6.0m/s²

The Speed of the conveyor belt≥40m/min

Cutting head positioning accuracy error  ≤±0.2 mm

Voltage Power

Installed Power requirements: 380V/50HZ

The actual power of the equipment: 8KW

Compressed air: 0.6MPA

Mechanical Part

Platen: the use of waterproof board. (Flatness ≤ ± 0.20mm / m).

Rack: Japan KHK.

Drive belt / pulley: Italy

Wheel / wheel clip: Germany Boller.

Electrical parts

Use of industrial IPC directly to control, Microsoft Windows interface.

Voltage:380V/50HZ. Equipment with transformer device.

Motor:Japan Yaskawa servo motor.

Proximity switch : SONON

Control card: US imports, Galil

Main electrical components: Japan Izumi relay.

Pneumatic proportional valve: Japan SMC



SY-4028 Air Floating glass breaking table

Technical parameters

Workbench size: 4200×2800mm

Workbench height: 900±30mm (customized accepted)

Fan quantity: 1 set (independent switch control)

Main configuration

Table cover: black fiber felt.

Table board: High density fiber board

Ejector rod: crosswise one piece, lengthways one piece
