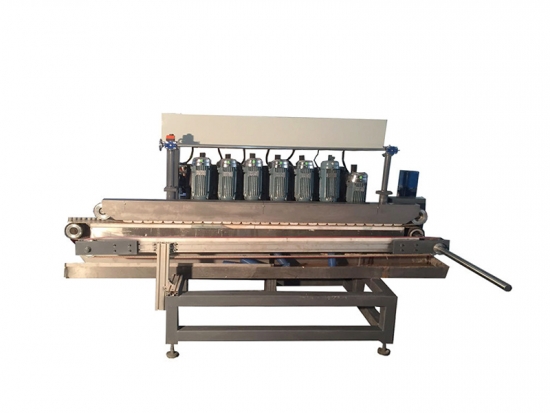

Glass Beveling Machine

  • Item NO.:

    SY-1000-7
  • Color:

    Steel Blue or Customized
  • Lead Time:

    20 days
  • Warranty:

    1 Year
  • Size Range:

    60*60-1200*1500mm
  • Processing Range:

    Straight line glass
Product Details

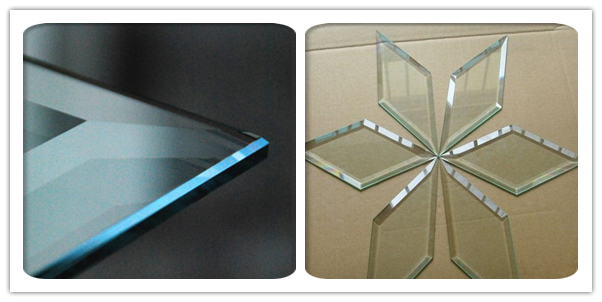

Ruilong in recent years to adapt to the market needs to develop a new generation of glass machinery is the smallest volume on the market high-precision beveling machine, mainly used for processing small glass, crafts, mosaic and so on. Adopt frequency converter to adjust grinding speed, wide adjustable range, good stability, easy to operate, gather rough grinding, finish grinding and polishing automatically. The utility model has the advantages of high working efficiency, energy saving and electricity saving.


Dimension: 2700x600x1500mm

Power: 14kw

Voltage: 380V-50HZ

Grinding speed: 0-2.5min

Grinding thickness: 3-12mm

Max. Glass size: 1200*1500mm

Min. Glass size: 60x60mm

Spindle quantity: 7pcs
