  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing and drying machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

  • cutting laminated glass
    Automatic Laminated Glass Cutting Machine

    This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.

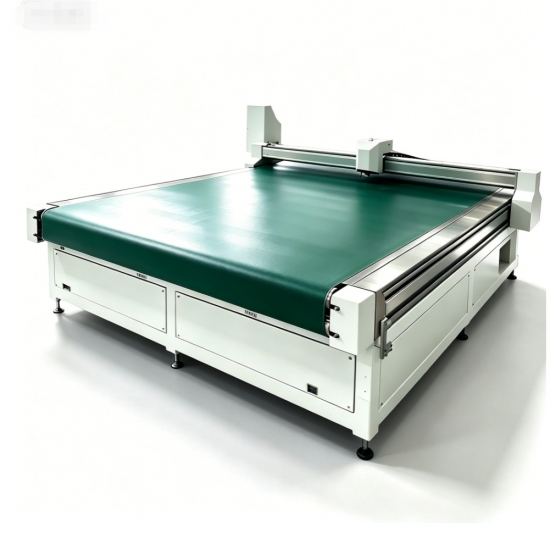

Conveyor Type CNC Glass Cutting Equipment Factory Supply

This fully automatic CNC ultra-thin glass cutting machine adopts belt conveyor feeding structure. Equipped with high-precision CNC control system, it delivers stable, clean cutting for ultra-thin flat glass, screen glass and electronic glass. It supports custom irregular graphic cutting, with smooth material transmission and low breakage rate, ideal for mass glass processing production lines.
  • Brand:

    Ruilong
  • Item NO.:

    SY-2525
  • Payment:

    T/T, LC
  • Product Origin:

    China
  • Color:

    Customized
  • Shipping Port:

    Shanghai
  • Lead Time:

    4-6 weeks
  • Warranty:

    1 Year
  • Size Range:

    Customized
Product Details

Technical Parameters

Cutting thickness: 0.12-19mm | Working size: 2500×2500mm
Tolerance: Straight ±0.05~0.10mm, Special shape ±0.15mm
Max cutting speed: 80m/min | Power: 3.6kw | Weight: 4800kg

Premium Brand Accessories

Yaskawa servo motor, HIWIN guide rail, TBI screw, SMC valve, Airtac pneumatic parts, Schneider electrics, Fotek sensor
O-grade marble air flotation table, auto lubrication & pneumatic positioning

Software

US GALIL dedicated glass cutting software, direct CAD import, auto cutter pressure & depth adjustment
