Home appliance glass processing production line

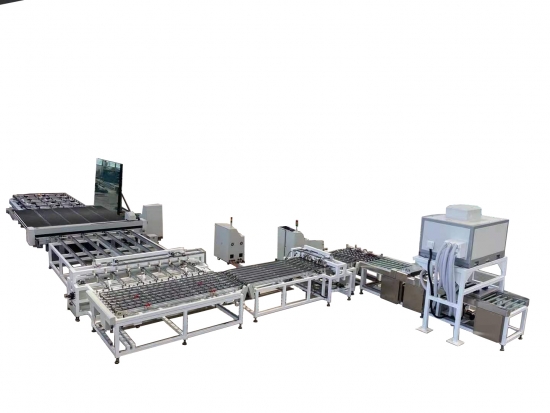

This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

Manual glass cutting machine with multi cutters, just need hand move the handle, then could finish cutting procesisng.

Single side glass grinding machine specifically for cabinet door, diamond door glass.

This equipment is a non-standard customized product, suitable for central drilling of pot lids or other non-flat glass. It adopts pneumatic clamping to hold the glass (the cylinder stroke or positioning block needs to be manually adjusted to replace the product diameter). The drill bit), can drill holes of different diameters, automatic control, manual loading and unloading. The stepper motor controls the up and down to fight against each other in order to prevent the collapse caused by the force on one side. Simple operation and convenient maintenance.

Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

Full Automatic Glass Cutting Machine is controlled by computer.

The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

The entire automated assembly line is fully automatic for the glass plate with a plate width of 1830 * 1220mm, a processed size of 454 * 404mm, and a thickness of 1.5-10mm --- cutting --- --- breaking --- delivery to the customer Own next equipment (height 900mm), realize unattended operation, and meet the production cycle of small pieces of glass to ≤12S / piece.
