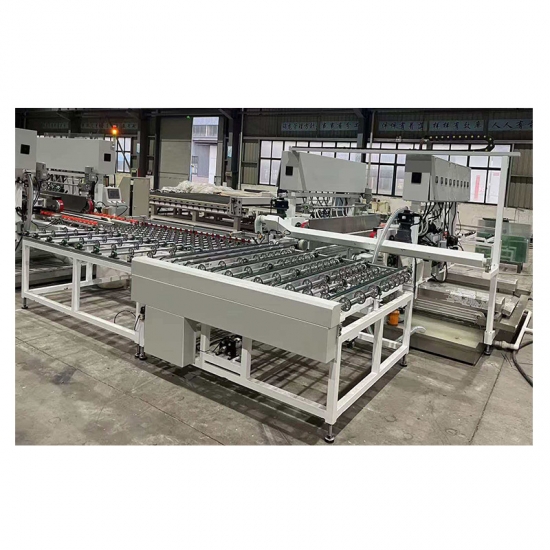

Glass Edge Grinding Line for Tempered Glass Factory Production

This production line consists of three machines, namely, the first edge grinding machine SY- 4000-18 ; the rotary table SY- 4028 ; the second edge grinding machine SY- 2500-18 . After the glass is ground on two sides by the first machine, it enters the right-angle rotary table and then enters the second edge grinding machine to process the other two sides.

Brand:
Ruilong
Item NO.:
SY-4028
Shipping Port:
Shanghai
Lead Time:
one month
Warranty:
1 year
Size Range:
3880*2440mm--400*400mm
Processing Range:
Float glass

contact now

Product Details

No.1 Edge Grinding Machine SY- 4000-18

A. Working principle and structural features:

1. This product is used for grinding flat glass, including rough grinding, fine grinding, upper chamfering, lower chamfering, upper chamfering polishing, lower chamfering polishing, and flat edge polishing at one time. The grinding head motor base slides using double linear guide rails and double ball screw drive to achieve a stable moving speed, eliminate moving gaps, reduce resistance and wear, ensure repeated positioning , and set processing parameters in one go .

2. This equipment has a solid structure, precise and smooth transmission system, advanced control system and powerful processing capabilities. It is suitable for processing handicraft glass, furniture glass, shower room frameless door glass , architectural insulating glass, and laminated glass .

3. The whole machine for grinding glass adopts PLC touch screen control, frequency conversion speed regulation, and positioning correction configuration to ensure the parallelism and diagonal accuracy of the ground glass.

4. The main drive adopts variable frequency motor and reducer configuration.

B. Main general technical parameters of double sided machine:

1. Working voltage/frequency: 380V/50HZ

2. Speed range: 0.5～5.0 m/min

3. Minimum size of processed glass: 400 × 400 mm

4. Maximum width of processed glass: 4000mm

5. Processed glass thickness: 3~20mm

6. Maximum grinding amount of bottom edge: 3mm (single side)

7. Maximum grinding amount of corners: 3mm

8. Total power: 42.1Kw

9. Total weight: 7800Kg/7600Kg

Grinding wheel serial number	Grinding wheel name	Model Specifications	quantity	Remarks (Brand)
1	Diamond grinding wheel	150×50 90 mesh	2	Nanhua
2	Diamond grinding wheel	150×50 150 mesh	2	Nanhua
3	Resin wheel	150×50 240 mesh	2	Nanhua
4	Resin wheel	130×50 240 mesh	2	Nanhua
5	Resin wheel	130×50 240 mesh	2	Nanhua
6	10S40	130×60	2	High-quality domestic products
7	10S40	130×60	2	High-quality domestic products
8	10S40	150×70	2	High quality imports
9	10S40	150×70	2	High quality imports

D. Equipment acceptance criteria

1. Quality requirements for glass to be processed:

1) The parallelism error of flat glass is no more than 3mm

2) The thickness error of flat glass is no more than 0.1mm

2. Equipment acceptance criteria:

3) Relative edge parallelism error: ≤±0.2mm/m;

4) Diagonal error: ≤±0.5 mm/m;

5) The glass processing surface is evenly polished;

E. Main components list:

1. Linear guides and ball screws are from Taiwan TBI ;

2. The grinding head motor is Zhuoli ;

3. The synchronous belt is made in China;

4. Photoelectric switches and intermediate relays are from Omron;

5. Delta is selected as the programmable controller

6. Human-machine interface and frequency converter are all from Taiwan Delta ;

7. The rotary encoder is imported;

8. The circuit breakers and contactors are from Great Wall and Chint.

9. The synchronous pulley is made of super-hard aluminum alloy;

Right angle rotary table SY- 4028

illustrate

It consists of two devices: a right-angle turntable and an acceleration section. The acceleration section is configured the same as the right-angle turntable.

The layout diagram is available in PDF format.

1. Pass the maximum glass size of 4000 * 2500mm ;

2. After processing by the upper machine, the glass enters the right-angle turntable;

3. After the right-angle turntable detects that the glass starts to enter, the green rubber roller conveyor assembly rises, and the red rubber roller in the figure conveys the glass. When the glass completely enters the right-angle turntable, a detection switch detects that the glass has been conveyed. The red rubber roller conveyor assembly descends, and the glass is carried by the synchronous belt. The synchronous belt starts, and the forward direction of the glass changes by 90 degrees. The synchronous belt conveys the glass to the lower machine.

This machine is controlled by PIC, which realizes glass transmission, pneumatic lowering of rubber rollers, and synchronous belt transmission to change the running direction of glass in sequence.

Machine parameters:

1. Machine size: 4500 *2600mm

2. Rotary sheet specifications: maximum 2500* 4000mm ; minimum 400* 400mm

2. Transfer speed: 1--3 pieces/minute

Configuration:

1. Rubber roller: Domestic virgin rubber roller

2 Synchronous belt Shanghai

3 PLC Delta

4 Transmission motor: variable frequency motor

No.2 Edge Grinding MachineSY-2500-18

Configuration and structure are the same as the edge grinding machine; the maximum processing parameter is 2500mm.
