  • vertical washing machine
    Top open vertical washing machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  • Round Glass Grinding Machine
    Instrument Glass Cover Grinding Machine

    This equipment is a non-standard customized equipment. The main customer group is instrument glass, which is used for the chamfering process of round glass.。

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

  • cutting laminated glass
    Automatic Laminated Glass Cutting Machine

      This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.  A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.   B.Machine Parameters  1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control   C. Machine configuration(Can specify configuration)  1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT  5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission  shaft:  China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint  D. Workflow description  Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly.   E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.

The 6th Industrial Design Competition of Anhui Province

2019-08-30

In order to further create an industrial design development atmosphere, foster and enhance the industrial design industry, and promote the high-quality development of the industrial economy, the gift to the 70th anniversary of the founding of New China. On the morning of August 30, 2019, the awarding ceremony of the 6th Industrial Design Competition of Anhui Province was held in Caoshan Industrial Design Town, Bengbu City, Anhui Province. The theme of the competition is “Innovative Empowerment and Design Quality”.
The ultra-thin cnc glass cutting machine independently researched and developed by Ruilong participated in the exhibition and received unanimous praise from all walks of life.

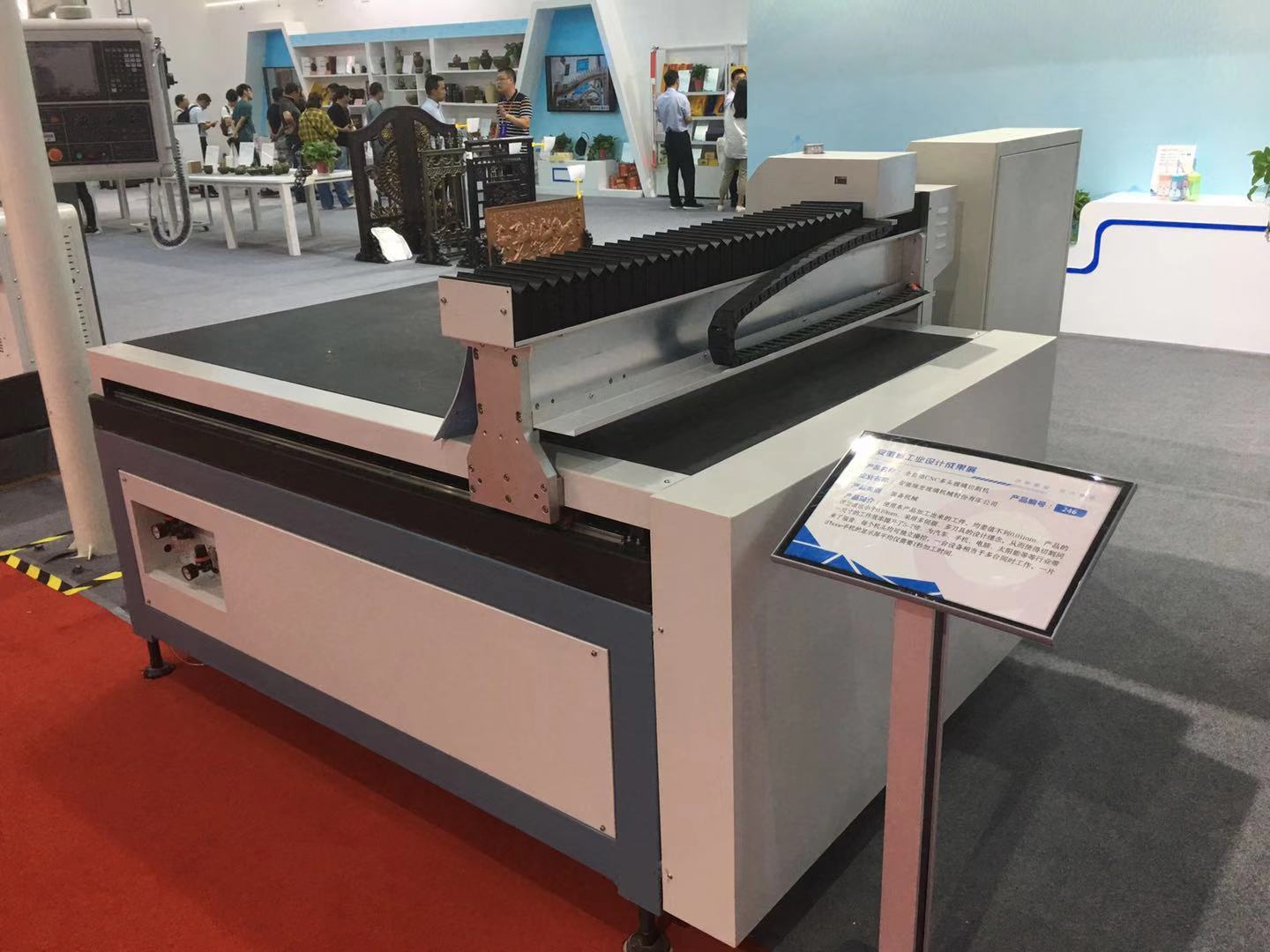

The fully automatic CNC multi-head glass cutting machine used in this exhibition has adopted the design concept of multi-servo motor and multi-tool, which makes the working efficiency of cutting the same size increase by 5-7 times. Bringing the gospel to the automotive, mobile, computer, solar and other industries. Each cutting head can be operated independently, and one unit is equivalent to multiple units working at the same time. The average glass cut by this ultra-thin glass cutting machine is less than 0.01mm, which can meet the high precision requirements of glass cutting in different industries.
