  • Ruilong Automatic glass breaking line
    Automatic glass breaking line

    This production line is customized according to customer requirements. A total of 5 machines are composed. The composition of the machine is as follows: 1 SY-4028 double-turn single-station automatic loading machine. 2 SY-4028 automatic glass cutting machine. 3 Fully automatic horizontal breaking  machine. 4 Fully automatic vertical breaking machine. 5 SY-800-2 washing machine;

  • vertical washing machine
    Top open vertical washing and drying machine

    Glass feed section-glass cleaning section-glass drying section-glass discharge section-assistant inspection section.

  •  Cutting ceramic
    Glass-ceramic Cutting Machine

    The automatic glass cutting machine is designed and manufactured according to the requirements of the buyer. The front and rear sections are connected to the glass chip taking manipulator, which is used to complete the automatic cutting and special-shaped process of cooktop panel glass.

  • Glass transfer table
    Glass Transfer Table

    This table is for glass transmission, the table size is customized according to customer's requirements.

  • cutting laminated glass
    Automatic Laminated Glass Cutting Machine 合わせガラス切断機 접합 유리 절단기

    The only patent for laminated glass cutting  in China This machine is a new generation of full automatic laminated glass cutting machine developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting accuracy.  A.Structure of machine Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength. Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning system. The second paragraph contains the upper and lower knife cutting system, the cutting film system, the heating system, and the auxiliary discharge system.   B.Machine Parameters  1.Machine installation size: 6735 * 5640 * 1412mm (estimated) 2.Machine packing size: 11700 * 2260 * 1500mm (40ft container) 3.Weight: about 3000KG 4.Processing range of glass size:400*400mm --- 3700*2500mm 5.Processing range of glass thickness:3+X+3mm---8+X+8mm 6.Cutting speed: cutting 1-2 times in one minute 7.Heating time: Adjust by operator 8.Gantry cutter head moving speed: 0 --- 80 m / min. 9.Pressure of cutter and breaking: Pneumatic proportional valve control   C. Machine configuration(Can specify configuration)  1.Motor: Delta SERVO MOTOR 2.Drive: Delta 3.Plc and touch screen: Delta 4.Electrical elements: CHINT  5.Program: Self-Design 6.Heating tube: China 7.Timing belts and wheels: China 8.Air cylinder and knife: Self-Design 9. Knife wheels: imported from Japan 10. Fan motor: China 11.Transmission  shaft:  China 12. Table Felt: imported 13. Proportional control valve: SMC from Japan 14. Machine frame: square tube welding 15. Sheet metal cover: plastic spray / paint  D. Workflow description  Man-machine interface HMI setting system parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the synchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input(There's a location system)一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut(There's an automatic injection system)一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film(PVB or EVA)一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position(If you need to turn around and cut, you need to do it manually)一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly.   E. Advantage 1.The whole machine is equipped with automatic positioning. The length and width dimensions that need to be processed can be manually set on the man-machine interface, which makes up for the shortcomings of inaccuracy and low production efficiency caused by previous generations of manual positioning. 2.Adopting full servo control, stable performance, guaranteed accuracy and doubled efficiency.

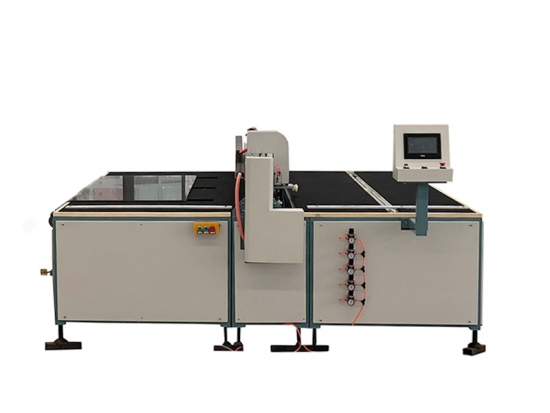

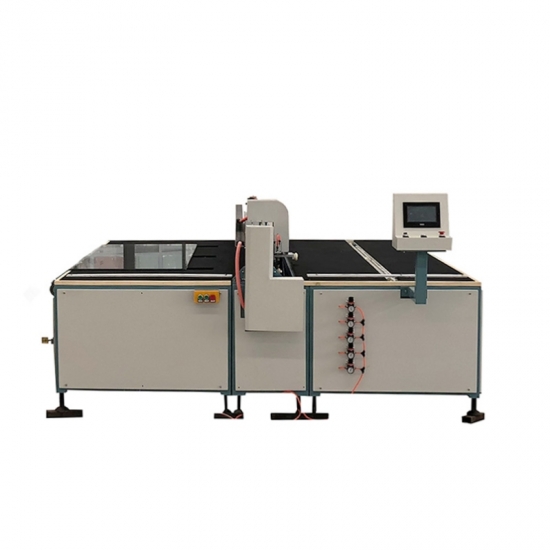

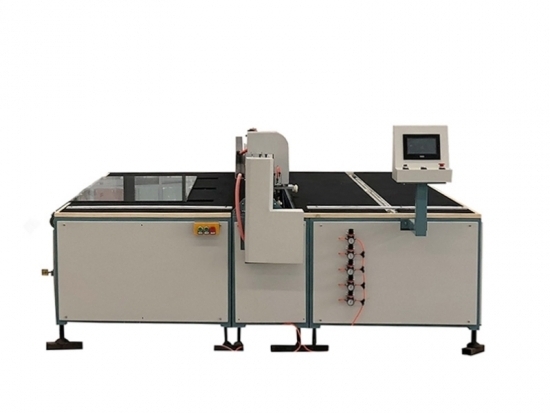

Laminated Glass Cutting Machine SY-2621 合わせガラス切断機 접합 유리 절단기

Laminated glass cutting machine could cut laminated glass and single flat glass size.
  • Market Price:

    $9700
  • Warranty:

    1 year
  • Size Range:

    400*400mm-2440*1830mm
Product Details

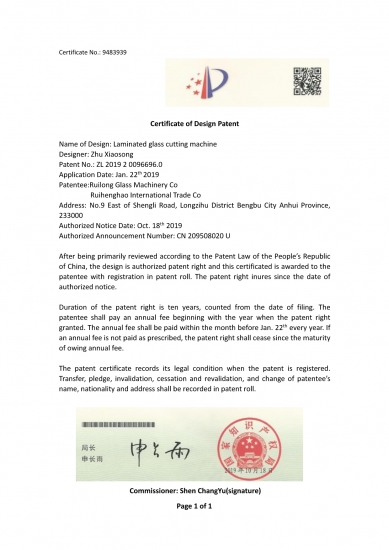

The only patent for laminated glass cutting  in China


Product introduction

Our company research and development production SY-2621 type high precision twin-cutter full auto laminated glass cutting machine is widely applied in thick plate glass, laminated glass. The cutting equipment operation is convenient, reliable stability, cutting efficiency and high precision



Function

National standard square pipe welding frame. Synchronous belt transmission system. PLC and imported electrical components, stepper motor, LCD display, man-machine interface, more convenient operation, stable performance. Cutting speed can be set directly. The cutting positions of the upper and lower cutter heads are consistent, the matching degree is high, and the breaking piece is easy.



Features

1, The cutting positions of the upper and lower cutter heads are consistent

2, Upper cutter with broken wheel, automatically press the lower layer of glass;

3, When the next lever is broken, there is a pneumatic pressure to ensure the effect of breaking


Cutting precision:≤±1mm

Diagonal accuracy:≤±2mm/m

Max. Cutting size :2440×1830mm(special size can be customized)

Min. Cutting size:400*400mm

Cutting thickness:4-16mm

Cutting efficiency:1sheet/2—4min

Cutter life:30,000m--50,000m

Operator:1-2 people

Machine dimension : 3150*2150*1250mm


Use profile

set cutting size

loading glass on table

rotate the glass

start fan

remove glass to cutting position

stop fan

cutter remove to cutting position

pneumatic mode control cutter down

cutter up after cutting

the lower pressure wheel starts the pressure glass

Lower beam move do breaking

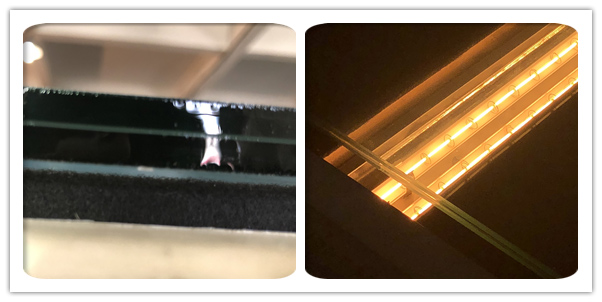

Heating or alcohol spray to breaking

finish all processes


Handing and installation notice

In the process of carrying, please gently handle and avoid collision,When installing can use level correction and adjust the four feet adjustable bracket so that the desktop level

Major dispositions:

Equipment frame structure: GB thick wall rectangular pipe welding

Straight guideway: Taiwan silver straight square guideway

Motor synchronous wheel and belt: Babel, Italy

Pneumatic components: Yongqing, Zhejiang, China

Motor: China Sutai 130 step motor

Driver: Shenzhen Kinco

PLC: Panasonic, Japan

Touch screen: Shenzhen Kinco

Platform board: original imported E0 grade high density board from Taiwan

Felt: original imported felt from Taiwan.

Fan: 4KW 2 sets made in China

Steel plate: 1. 2 mm thickness of outer shell

Heating tube: light wave infrared


Laminated glass cutting machine
